Sunny Medical Equipment Limited

Specification:

Outer diameter(forward view):

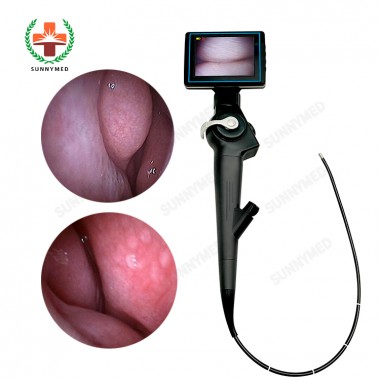

Video bronchoscopeφ5.8mm with working channel:2.2mmm
Video bronchoscope φ4.8mm with working channel:1.5mmm
Video nasopharyngoscopeφ3.8mm with working channel:0.6mmm
Video nasopharyngoscope φ2.8mm without working channel

Camera
Pixel count: 300000 pixels (1/10" color CMOS)
Analysis: 10.5 lp/mm (at 7mm)

Optic system
field of view(FOV): 90° ± 10°
depth of field(DOF): 3mm~50mm
view direction: forward

Monitor: 3.5”TFT LCD, high resolution
Controls: brightness adjusting, internal image processing;snapshot;video recording

Power supply
lithium battery : working time ≥1.5H
charging time: 8~10 H

Memory card: TF card 2 G (provided) , Max 16G (option)
Memory volume: JPEG : 60KB; 4 hours' video recording: 1G
USB2.0: for transfer data to PC

Articulation: UP 180 degree,Down 130 degree
illumination adjustable: >10000 Lux of illumination with Fiber
Insertion tube covering: polyurethane (match medical standard)
Working length: 300-600mm
Waterproof: IP67 (cable and holder)
Working Temperature: 5~40°C
Atmosphere Pressure: 700hpa~1060hpa

Package: 50*45*35 cm
