SY-B002 Laboratory Auto Hematology Analyzer hematology devices

  • FOB Price:US $2500-3200 / Roll(s)
  • Min.Order:1 Roll(s)
  • Payment Terms:L/C , T/T , Money Gram
  • Favorite
Sunny Medical Equipment Limited

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

6/10

Product Information

  • Model:SY-B002
  • Certification:CE
  • Brand Name:Sunnymed
  • Place of Origin:Guangdong
  • Warranty:1 year

Description

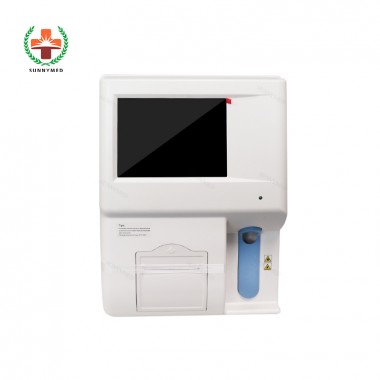

SY-B002 Laboratory Auto Hematology Analyzer hematology devices

Specifications :

Test principle: electrical resistance for counting and SFT method for HGB

Test flow: fully auto and the blood don’t need dilute or other process

Quantity technology: ultra sound quantity method, resistance from disturb

Clot clear: high voltage burn and high pressure flush

Parameter: 3 part differentiation of WBC,20 parameters + 3 histograms

Sample volume: 9.8μl peripheral blood or venous blood

Throughput: 35 samples/hour

Language: English

Calibration mode: auto mode and manual mode are selectable, provide original calibrator and control

Reference range type: newborn,children,male,female and universal

Reagent: provide original reagent

Memory: save more than 30000 sample’s detail results including histograms

Display: Large colour LCD, show all parameters and histograms at same screen

Input and output: keyboard,mouse,Parallel Port,RS232 serial port, can be connected to computer

Printer: Inner thermal printer,can be connected to external computer and printer

Working Environment: Temperature:18℃~35℃;Humidity:40%RH-80%RH

Voltage: AC 175 V~265V,Auto adapt according to the input voltage

Dimension: 300 mm×400 mm×440mm(L×W×H)

Net weight: 17Kg



Performance :

Item

Precision, CV

WBC

≤2.0

RBC

≤1.9

HGB

≤1.9

MCV

≤0.4

PLT

≤4.0

Carry over

WBC≤2,RBC≤1,HGB≤2,PLT≤2





Test parameter

WBC

Lymph#

Mid#

Gran#

Lymph%

Mid%

Gran%

RBC

HGB

HCT

MCV

MCH

MCHC

RDW-SD

RDW-CV

PLT

MPV

PDW

PCT

P-LCR

WBC Histogram

RBC Histogram

PLT Histogram
