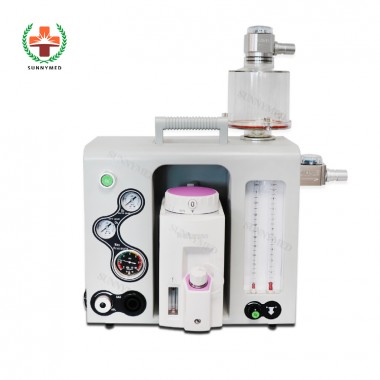

SY-E600 Good Price Surgical Equipment Veterinary Portable Anesthesia Machine for Animals

Features

CE approved portable anesthesia machine

Compact light-weight and portable, could be transported by pull-rod case, put on table and assembly on the trolley.

Suitable for small animals, Jackson or Bains Absorber is available

Specifically designed to accommodate low flow

Selectatec-bar and quick change vaporizer mounting device

Professional airtight breathing circuit design, provide the stable gas anesthesia, save anesthesia gas consumption, to ensure a clean operating room and laboratory environment.

External and reusable soda lime canister, easily watch and replace soda lime.

With oxygen flush function to ensure that clinical anesthesia demand and oxygen supply demand.

With APL pressure reducing valve to prevent pressure to hurt the animal, ensure the animal safety .

Wastewater discharge system

Visible inspiration and expiration valve

Module rack with polyester medical material with superior spray technology, high strength and light weight.

High precise anesthesia vaporizer with temperature, flow and pressure compensation.

With transport case, convenient to take and transport

Trolley (Optional)

Low pressure alarm function, make doctor focus on the patient.(Optional)

Specification

Application: 0.5~100Gkg animal

Ventilation mode: Closed, half-closed, half-open

Tidal volume (Manual Mode): 10~2000ml

Gas pressure: 0.25~0.65Mpa

Flow meter: O2 two tube: 0.1~10L/M

APL valve: 0.5~6.0Kpa

O2 Flush: 25~75L/min

I:E: As the doctor operation

BPM: As the doctor operation

Monitoring: Airway pressure, respiratory mode.

Three gauges: Two for O2,one for airway pressure

Vaporizer

STANDARD: CE, ISO9001, ISO 8835-4, 93/42/EEC MDD, ISO 5358
with the latest innovative design of delivery system, vaporizers deliver accurate concentrations under varying conditions of variable flow rate, pressure, temperature and so on.

Feature
stably deliver agent, automatic temperature-compensating .deliver accurate agent
Sophisticated delivery system, Stable, prompt, accurate
Various kinds of mounting types. Meet different anesthetic machine requirements.

Product Specification/Models

Concentration range:
Enflurane 0.2 to 5%
Isoflurane 0.2 to 5%
Halothane 0.2 to 5%
Sevoflurane 0.2 to 8%

Flow range: 0.2 to 15L/min
0.2 to 10L/min(normal usage) for concentrations>5 vol%
Filling volume for agent:
about 340ml with dry wick
about 300 ml with moist wick

Mounting type:
selectatec compatible
draeger plug in
cagemount (ISO 23mm tapers)
cagemount with interlock
