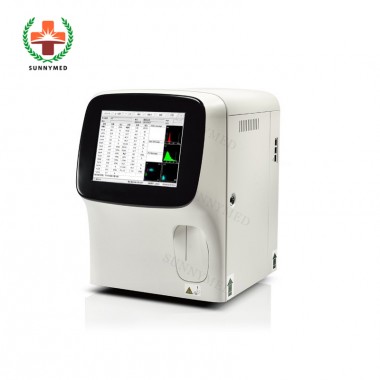

SYB-056H 5 Parts Auto Hematology analyzer blood testing machine for medical use
1, Principles:
Trl-angle laser scatter method for WBC category and WBC counting, impedance method for RBC and PLT counting, cyanide free reagent and calorimetric method for hemoglobin concentration testing.
2, Parameters:
23 Parameters:WBC,NEU%,NEU#,MON%
MON#,LYM%,LYM#,EOS%,EOS#,BASO%
BASO#,RBC.HGB,MCV,MCH,MCHC,RDW-CV
RDW-SD.HCT,PLT .MPV.PDW,PCT
3, Graphic Parameters:
Four 2D scattergrams, Three histograms
4,Throughput: 60 samples/hour
5,Sample Volume: Whole blood 15ul
6,Sampling Mode: Manual mode
7,Test Mode: Whole blood, pre-diluted blood
Principle | Impedance method for WBC, RBC, PLT counting | |||
Cyanide-free reagent for Hemoglobin test | ||||
Flow Cytometry (FCM), Semi-conductor Laser scatter, chemical dye method, independent Basophil channel | ||||
Parameters | WBC, Lym%, Lym#,Mon%, Mon#,Neu%, Neu#,Eos%, Eos#, Bas%, Bas#, | |||
3 DIFF scatter grams and 1 BASO scatter gram, 3 histograms | ||||
Throughput | Up to 60 samples per hour | |||
Sample Volume | Whole Blood: 15ul | |||
Pre-diluted: 20ul | ||||
Test Mode | CBC, CBC+DIFF | |||
Performance | Carryover | Repeatability | Linearity | |
WBC | ≤0.5% | ≤2.0% (4-15×109/L) | 0.00-300×109/L | |
RBC | ≤0.5% | ≤1.5% (3.5-6.0×1012/L) | 0.00-8.5×1012/L | |
HGB | ≤0.5% | ≤1.5% (110-180g/L) | 0-250g/L | |
PLT | ≤1.0% | ≤4.0% (150-500×109/L) | 0.00-3000×109/L | |
Data Storage Capacity | Up to 50,000 results including numeric and graphical information | |||
