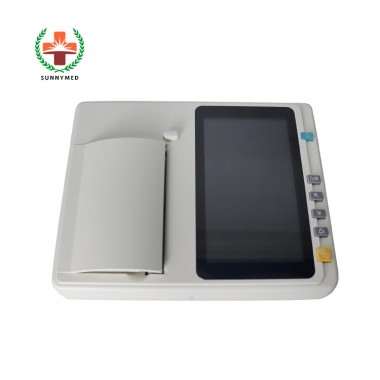

SY-H004 medical cheap 3 channel ecg mini electrocardiograph machine
Touch Screen
7 inches Color LCD display
Support SD card, USB disk
Technical Specification
| Items | specification | ||
| Features | 7 "display, touch screen Support Ecg analysis capabilities | ||
| Lead | standard 12 leads | ||
| lead acquisition | synchronously 12 leads | ||
| Input circuit | Floating; Protection circuit against Defibrillator effect | ||
| Input Impedance | ≥50MΩ | ||
| Input circuit current | ≤0.0.05μA | ||
| Record mode | Automatic: 3CH×4+1R, 3CH×4, 3CHx2+2CHx3,3CHx2+2CHx3+1R,6CHX2; Manual: 3CH, 2CH, 3CH+1R, 2CH+1R; Rhythm: Any lead selectable. | ||
| Filter | EMG Filter: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz DFT Filter: 0.05 Hz/ 0.15 Hz AC Filter: 50 Hz / 60Hz | ||
| CMRR | >100dB | ||
| Patient current leakage | <10μA | ||
| Input Circuit Current | <0.05µA | ||
| Frequency Response | 0.05Hz~150Hz (-3dB) | ||
| Sensitivity | 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV | ||
| Anti-baseline Drift | Automatic | ||
| Time constant | ≥3.2s | ||
| Noise level | <15μVp-p | ||
| Paper speed | 12.5 mm/s, 25 mm/s, 50 mm/s | ||
| Recording mode | Thermal printing system | ||
| Paper specification | Sun-7031:80mmx20m paper rollSun-7062:120mmx20m paper roll | ||
| LCD display | 7" graphic LCD | ||
| Safety classification | IEC60601-1 class I, type CF | ||
| Power supply | AC: 100~240V, 50/60Hz, 30VA~100VA | ||
| Fuse | AC220V±10% 2*Φ5×20mm,T2A/250V AC time lag | ||
