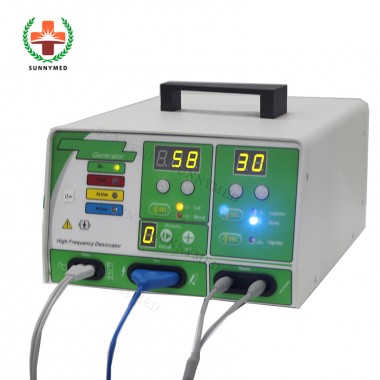

SY-I045C Medical Portable Intelligent Biopolar Electrosurgical Unit Cost
Portable in size, available in both monopolar and bipolar modes, convenient handle power control and memory function, suitable for micro surgery, gynecology and arthroscopy.
Technical parameters:
Environmental temperature range: | 5°C~ 40°C |
Relative moisture range: | ≤80% |
Atmosphere pressure range: | 86.0 ~ 106.0 Kpa |
Working modes: | |
Pure cut: | 1w ~ 60w (Load 500Ω) |
Blend: | 1w ~ 60w (Load 800Ω) |
Coagulation: | 1w ~ 60w (Load 1000Ω) |
Fulguration: | 0.1w ~ 35w (Load 1000Ω) |
Biploar: | 1w ~ 30w (Load 200Ω) |
Technology data: | |
Voltage: | 220V±10V, 50Hz ±1Hz |
Working frequency: | 357 KHz ~ 575 KHz |
Leakage currents to ground: | Less than 0.5mA |
Leakage currents to patient: | Less than 0.01mA |
Display Setting:
Fulguration
a. 0-10 range: 0.1watt increments
b. 10-35range: 1.0 watt increments
Cut, Blend, Coagulation and Bipolar
1.0 watt increments
Power supply:220V±10%,50±1%Hz.
Transportation and storage
a) Ambient temperature range: -40°C~55°C;
b) Relative moisture range: ≤95%;
c) Atmosphere pressure range: 500hPa~1060hPa.
Key Features
SY-I045C Electrosurgical Generator with state-of-art technology offers superb performance on the electro-surgery, and shows remarkable safety, reliability and convenience.
1.Two levels of coagulation: pinpoint coagulation and fulguration
Pinpoint coagualtion provides precise control of bleeding in localized areas.
Fulguration provides greater control of bleeding in highly vascular over surface areas.
2.Presets
The unit incorporates as many as ten user-defined presets for easy recall of frequently and settings.
3.Isolated RF output for Cut, Blend and Coag modes
This minimizes the potential of alternate site burns.
4.Ground Referenced RF output for Fulguration modes
5.Self diagnostics
These diagnostics continually monitor the unit to ensure proper performance. If the diagnostics is unsuccessful, the warning tones can be heard.
