Sunny Medical Equipment Limited

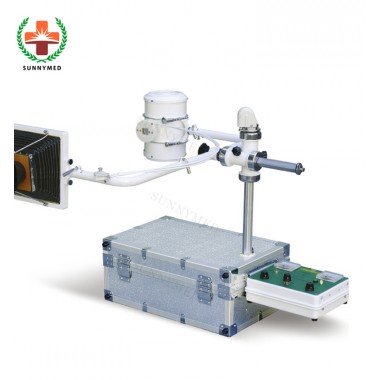

SY-D001 Portable x ray unit orthopaedic10ma medical x-ray machine price

Profile & Features

The product is an anti-shock, anti-scattering, single-focus, half-wave rectification and portable diagnostic X ray machine. It can be used in medical X ray Radiography and fluoroscopy for the oral cavity,

orthopedic, heart and lung, head, contraceptive ring and the impurities in the body.

Main Technical Specification

Max rated capability Fluoroscopy: 75kVp,3-5mA (uncontinuous use)

Common Fluoroscopy: 65kVp,3mA

Max rated capability Radiography:75kVp,10mA,6s(Intermittent 3 minutes)

Current:Fluoroscopy(uncontinuous),Radiography(instantaneous)

Power Supply: AC220V±10% ,50Hz,1kvA

Moving Range of X-ray Tube:Vertical 220mm,Horizontal 130mm

Head rotation angle of 360 degrees vertical

Size of Screen: 203mm x 254mm

Size: 500mm x 310mm x 180mm

Weight: 25kg
