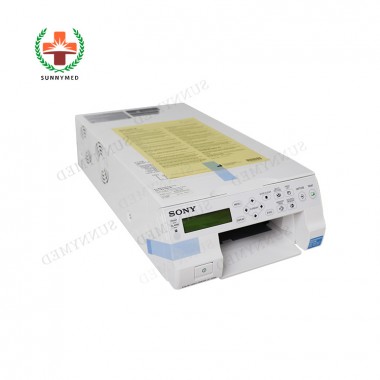

UP-25MD color thermal printer video color printer for ultrasound
The Sony UP-25MD color printer is the ideal choice for the ultrasound, endoscopy and microscopy applications. The compact high-speed medical device delivers excellent quality, 423 dpi resolution prints in less than 20 seconds and easily integrates into any medical cart with its slim 8-3/8" form factor. The UP-25MD printer's convenient front-panel design offers user-friendly menus, flexible color adjustment and two-user presets. The device provides LED notification of data transmission and the print cartridge status. The UP-25MD accepts standard Sony color print media as well as an optional laminated media model, providing long-lasting picture quality with high resistance to water and fingerprints.
| Printing Method | Dye Sublimation Thermal Printing |
| Thermal Head | 423 DPI |
| Gradations | YMC images using 8 bit/256 gradations per color,approx. 16.77 million colors per pixel |
| Resolution | 423 DPI |
| Printed Picture Size | UPC-21L/UPC-24LA Size: Full 5 X 3 3/4"UPC-21S/UPC-24SA Size: Full 3 3/4" X 2 7/8" |
| Print Speed | NTSC: UPC-21S approx. 19 sec.UPC-21L approx. 29 sec |
| Print Speed (Laminated Media) | NTSC: UPC-24SA approx. 25 sec.UPC-24LA approx. 36 sec. |
| Paper Capacity Laminated | S size tray: Max. 60 sheets L size tray: Max 40 sheets |
| Power Consumption | AC 100 to 240V, 50/60Hz |
| Input Current | 1.7-1.0 A |
| Dimensions | 8 3/8 X 3 7/8 X 15 5/8" (WHD) |
| Weight | 12.6 lbs |
| Video Input | RGB/YPbPr (BNC X 3)S Video (4-pin min-DIN X 1) Composite Video (BNC X 1) |
| Media | UPC-21L (L size standard color print pack) (4 X 50 packs) UPC-21S (S size standard color print pack) (3 X 80 packs) UPC-24LA (L size laminated color print pack) (4 X 40 packs) UPC-24SA (S size laminated color print pack) (3 X 60 packs) |
