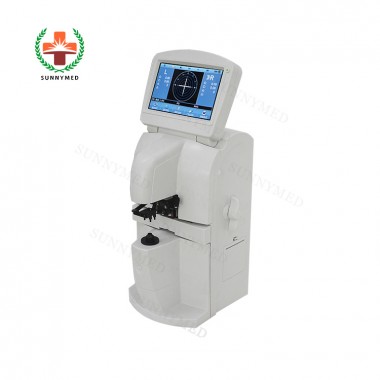

SY-V035A New arrival! ophthalmic auto lensmeter price

  • FOB Price:US $450-600 / Set(s)
  • Min.Order:1 Set(s)
  • Payment Terms:T/T , Money Gram
  • Favorite
Sunny Medical Equipment Limited

Business Type:Manufacturer

Country/Region:China

Ddu Verified

HOT Rank

8/10

Product Information

  • Model:SY-V035A
  • Certification:CE
  • Net Weight:6kg
  • Dimension:Specification: Adjustable LCD display screen Tilt color screen provides you with clear view from any position such as sitting and standing. Sensitive touch LCD display screen You just touch the scree
  • Packaging Details:54X35X40 cm
  • Brand Name:Sunnymed
  • Trademark:Sunnymed
  • Place of Origin:Guangdong
  • Warranty:1 year

Description



 SY-V035A New arrival! ophthalmic auto lensmeter price

Specification:

Adjustable LCD display screen
Tilt color screen provides you with clear view from any position such as sitting and standing.
Sensitive touch LCD display screen
You just touch the screen to finish your measurement,the operation could be easier and more convenient.
Measurement screen
Easy to use with recognizable icons.
The SY-V035A provide a user-friendly graphical interface for an immediate understanding.
Progressive measurement
A graph helps the operator to improve accuracy and speed in the measurement of near and far vision.
Automatic recognition of single and progressive lens
Hi-speed UV measurement
Just hold the lens through the sensor,the display will easily indicate the UV measurement by the progress bar.
Built-in thermal printer
Quick data print with built-in printer.Easy to reload printing paper.



Model

SY-V035A

Measuring range

Optical lens

Contact lenses



Astigmatism



Shaft position

To the light



A prism



-25.00D-+25.00D

-25.00D-+25.00D(BC=6.00-9.00)

(0.01D/0.12D/0.25D  Distance)

0.00D- ±10.00D(- MIX +)

(0.01D/0.12D/0.25D  Distance)

0º-180º(1º  Distance)

0.00D- ±10.00D(Add)

(0.01D/0.12D/0.25D  Distance)

0.00-20.00(horizontal.vertical)

(0.01/0.12/0.25  Distance)

Prismatic representation

X-Y    P-B

Pupil distance measurement

20.0-49.5mm(monocular)Monocular pupil distance, total pupil distance

Measurement Speed

0.09second

±10%(MAX SPEED)

Measurement Lens diameter

Optical lens

Contact lenses

Lens transmittance

Φ20mm — Φ90mm

Replace small caliber mirror holder(Φ5mm)



>10%(±15.00D—±25.00D>20%)

Point Method

Ink cartridge

Wavelength/

measuring point

600nmLED red light source

Screen

7 inch color LCD screen

800X640 Pixel

Print



Voltage

Thermal Printing

(Printing Paper Width:58mm)

AC100(±10%)—240(±10%)V

50/60Hz

Size

200(W)*150(D)*500(H)mm

Weight

4.3KG
