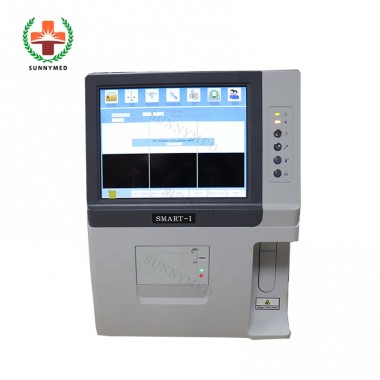

SY-BH192 Fully Automatic veterinary/human Blood Test Machine 3 part hematology analyzer

General Features:

Principle: electrical impedance for counting and SFT method for hemoglobin
Test parameters: three-part differentials of WBC,23 parameters
(including WBC ,RBC,PLT color histogram)

Sample quantity: 9μL venous blood, 20μL pre-dilution blood

Sample Pre-dilution: internal diluter, add 1ml dilutent
automatically by the needle; no need to add diluent manually,
to avoid error and make the operation more convenient and standard.
Working model: dual-channel testing
Aperture: WBC: 80μm RBC/PLT: 50μm
Throughput: Automatic sampling, 60 samples per hour.
Results storage: Storage of 10,000 patients’ results (including histogram).It is more convenient to manage and review historical data.
Reference value setting: For general use, male, female, children, newborns.
Calibration: Manual and automatic calibration

Technical Specifications:

High reliability & Safety (The most advanced technology and structure)
Adopting the most advanced binuclear embedded digital circuit
system makes the analytical ability great and stable
Separate test units of WBC and RBC makes the test results
more accurate and less cross- contamination
Adopting CPLD technology in data processing, free from the interference of electromagnetic signals
Easy operation
Easy operating interface
Dual test units, fast and convenient
Module design, fast maintenance
Economical and Durable
Long life of the machine, all accessories with high performance
Classic design of highly reliable fluid pipe structure
Long-term stability, accurate and reliable clinical test results is the core of SMART-I

QC: comprehensive QC program, forming and printing the histogram automatically.
Performance index: precision (CV) linear rang
WBC≤1.5% 0.00~99.9×109/L
RBC≤1.5% 0.00~99.9×1012/L
HGB≤1.5% 0~300g/l
PLT≤4.0% 0~999×109/L
MCV≤0.3% 40~150fL

Boot check: Self check for hardware, alarm for disorder Clog-removal: Real time monitor, high ignition,soak, flush and back flush
Classification: Floating landmark technique
Mainframe control: ARM Intelligent micro-processing
technology and high-performance document-management, display and print-processing.
Data analysis: intelligent pulse formulation techniques
Structural features: separate module design
Display:10.4″ large color LCD displays all parameters and histograms simultaneously
Print: internal thermal printer or USB port universal printer (matching)
Output: 3USB port, 1parallel printer port, 2 RS232 port
