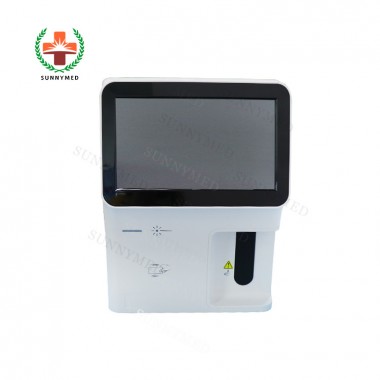

SY-BH193 medical 5 part auto hematology analyzer with 14'' Hd LCD touch screen
Feature of Hematology Analyzer :
Specification of Hematology Analyzer :
Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide free reagent for HGB test | |||
Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | |||
Parameters | 25 Reportable parameters WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 1 3D Scattergram 3 Histograms(WBC/BASO,RBC, PLT) 4 Research parameter: ALY%, ALY#, IG%, IG# | |||
Performance | Item | Linearity range | Carry Over | CV |
WBC | 0-300x109/L | ≤ 0.5% | ≤ 2.0 % | |
RBC | 0-8.00x1012/L | ≤ 0.5% | ≤ 1.5 % | |
HGB | 0-250g/L | ≤ 0.5% | ≤ 1.5 % | |
PLT | 0-3000x109/L | ≤ 1.0% | ≤ 4.0 % | |
Sample Volume | CBC+DIFF mode:≤20ul CBC mode:≤10ul | |||
Storage | 100,000 results including histogram, scattergram and patient information | |||
Interface | 4 USB ports, 1LAN port Bi-direction LIS, support HL7 protocol, Internal RFID reader | |||
Power Supply | 110/220V±10% , 60/50Hz | |||
Package Size | 480x375x517mm(L*W*H) | |||
Gross Weight | 50kg | |||
