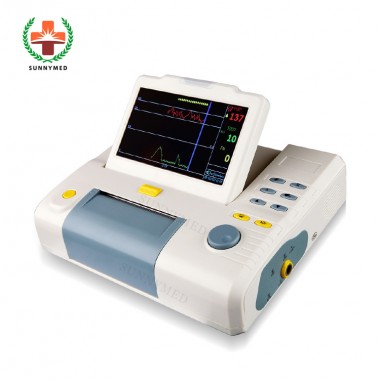

SY-C010-1 Portable 7 inch Cardiotocography Fetal Monitor Cardiotocograph Machine FHR TOCO TWINS

Technical Specifications:

Fetal Heart Rate Multi-crystal,pulsed doppler,high sensitive
Transducer Strengh <5mW/cm2
Working frequency 1.0MHz
Signal processing special DSP system and mode recognization
Measurement range 50~210 bpm

Alarm Range: High: 160 170 180 190 bpm
Low : 90 100 110 120 bpm

The largest audio output power 1.5W

TOCO

Measurement range 0~100units
Battery working time 2 hours(no printer working)
Speaker 1W
Power Supply AC 220V±20%,50Hz or 8.4V Li-battery
Power consumption <20W
Working Environment Temperature: 10~40 ℃, RH: 10~80%

Transducer Acoustic Output Under the requirements laid down in IEC 1157, 1992, the peak negative acoustic pressure does not exceed 1Mpa. The output beam intensity does not exceed 20mW/cm2 and the spatial-peak temporal-ave rage intensity does not exceed 100mW/cm2

Dimension 295W×240D×73H×mm
Net weight 1.75kg

Standard: FHR, TOCO, FM
Optional: Twins,FAS(Fetal acoustic simulator)
