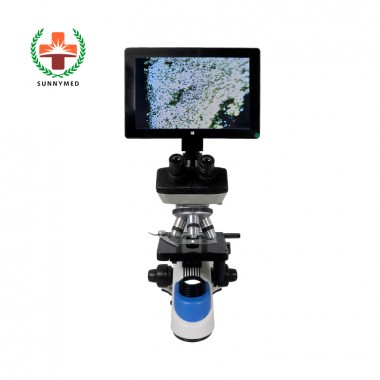

SY-B129F2 Laboratory Medical Biological Microscope Teaching Microscope For School With Touch Screen

Technical Parameters

1, magnification: 40X-1000X

2, the first observation: 30 degrees inclined shaft type binocular head, dual diopter can be adjusted; IPD 55X75mm.

3, Eyepiece: Wide field eyepiece WF10X18mm

4, the objective lens: achromatic objective 4X / 0.10,10X / 0.25,40X0.65 (shells), 100X1.25 (bombs, oil).

5, the focusing mechanism: coaxial coarse focusing mechanism, tension can be adjusted with coarse arbitrary limit, and locking mechanisms, to avoid damage to the objective lens and the lens. The stage at a stroke of 20 mm, fine-tuning grid is 0.002 mm.

6, revolving nosepiece: four-hole conversion mechanism.

7. stage: Double moving platform 140X135 mm, moving range 50X75 mm.

8. Condenser: Abbe condenser NA1.25 often Iris diaphragm and filter rack lift adjustment mechanism is adjustable.

9, built-in lighting system LED 3W cold light source 220V/50Hz light intensity continuously adjustable.

10, 10-inch tablet, camera 5 million

Technical Functional Description

This machine consists of two parts of the optical and mechanical systems, all of the optical system uses a unique anti-fungal measures to protect the long-term best optical performance, suitable for all levels of medical institutions, laboratories, routine testing Jishengjitong, biological Research and teaching in clinical trials and for bacteriological demonstration.

Parameter:

1.5 mega-pixel color camera

2.9.7" HD LED backlit touch screen

3.VMS3.6 image analysis software

4.720p video preview

5. Android 2.3 operating system, 1.2 GHz core processor ARM Cortex®AB

6. Support for external mouse or USB flash drive

7. 3 hours of battery life

8. Wi-Fi and Bluetooth ready

9. Standard C-mount
